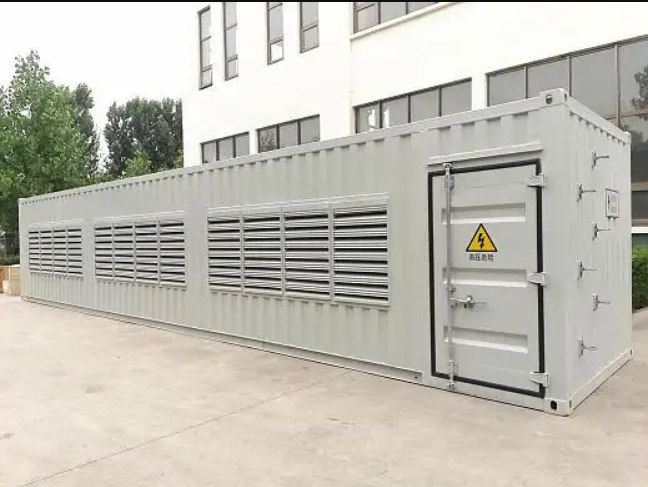

Mobile Prefabricated Data Center,Shipping Container Data Center For Telecom
The COOLNET containerized data center integrates AC and DC power supply, HVAC, closed hot and cold aisles, modular structure, fire protection, lighting, and intelligent monitoring, providing scalability, flexibility, reliability and security. The best solution for the fast and flexible needs of a large-scale data center.
COOLNET is a provider of modular data center infrastructure solutions, professional services. Our products are designed, developed and widely used to reduce the high costs and risks associated with traditional data center construction.
The internal components of the container data center include: cabinets, power distribution cabinets, UPS, batteries, air conditioners, fire protection, security and monitoring systems.
Size: standard 20ft/40ft or non-standard customized size.
Advantage
Convenient location
Unrestricted by climatic and geographical conditions, it can be deployed in difficult areas.
Fast deployment
No need for new construction, complete on-site installation in 1 day, plug and play.
High power density
The power density of the container can be expanded by more than 400kw, saving more space and construction costs.
Feature
mobile data center is pre-engineered, pre-tested and fully-configured architectures with high portability for edge computing applications.
A scalable, modular portable data center infrastructure solution that companies can expand as needed. Energy saving, low PUE.
The service life of the container data center is 25 years, and the standard IP55 protection level, safe and reliable backup power.
| PRODUCT PARAMETERS | ICDC-20 | ICDC-20 |
| Container Size | 20’HQ | 40’HQ |
| Rack Specification | 600*1000(1100)*2000mm | 600*1000(1100)*2000mm |
| Single Rack Capacity | 42U | 42U |
| Rack Quantity | 4PCS | 8-10PCS |
| Single Rack Capacity | 3-10KW | 3-10KW |
| IT Equipment Total Capacity | 12-30kw | 24-75KW |
| UPS | 25kva*2 N+1 modular UPS | 25kva*4 N+1 modular UPS |
| Battery back up time | 5-15mins | 5-20mins |
| Cooling | In-row air conditioner | In-row air conditioner |
| Monitoring system | YES | YES |
| Door Security System | YES | YES |
| Fire alarm and gas fire extinguishing system | YES | YES |
| Video Monitoring System | YES | YES |
| EPO | YES | YES |
| Transportability | Support | Support |
| Stackable | Support | Support |
| Application | Outdoor Type | Outdoor Type |
| Diesel Generator Module | Extraposition | Extraposition |
Applications
Enterprise: Small Data Center
Operator: Small IT room, small IDC, DR room and edge DC
Government: Smart City, Safe City Data Center
Education: University/Institute Data Center
Energy: Production/Investigation Field Data Center
Finance: Backup data center
Transportation: Airport/Railway/Port without housing power supply and distribution
